Log grapple HARDOX made, for mini excavators and forest cranes
DETAILS

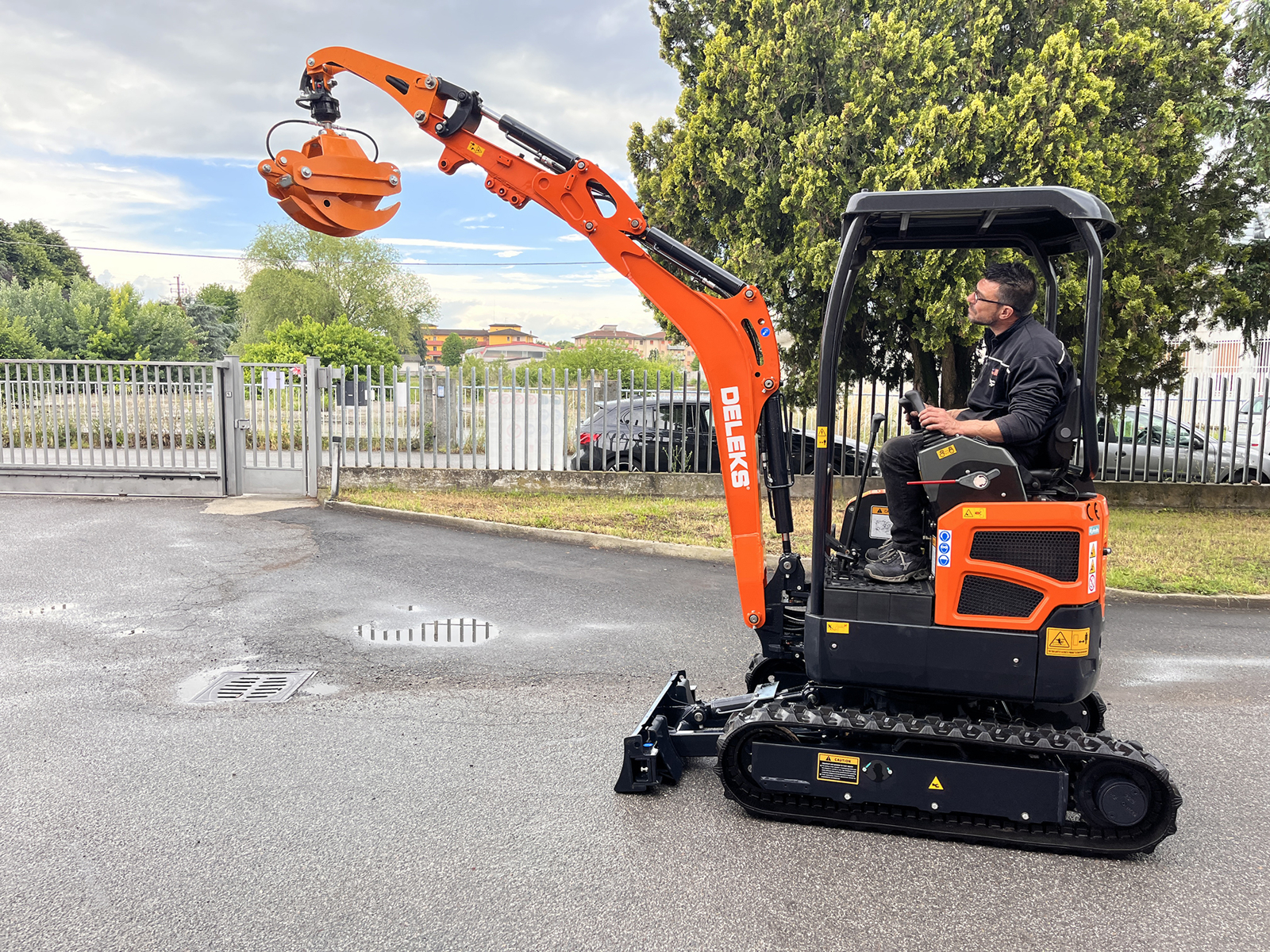

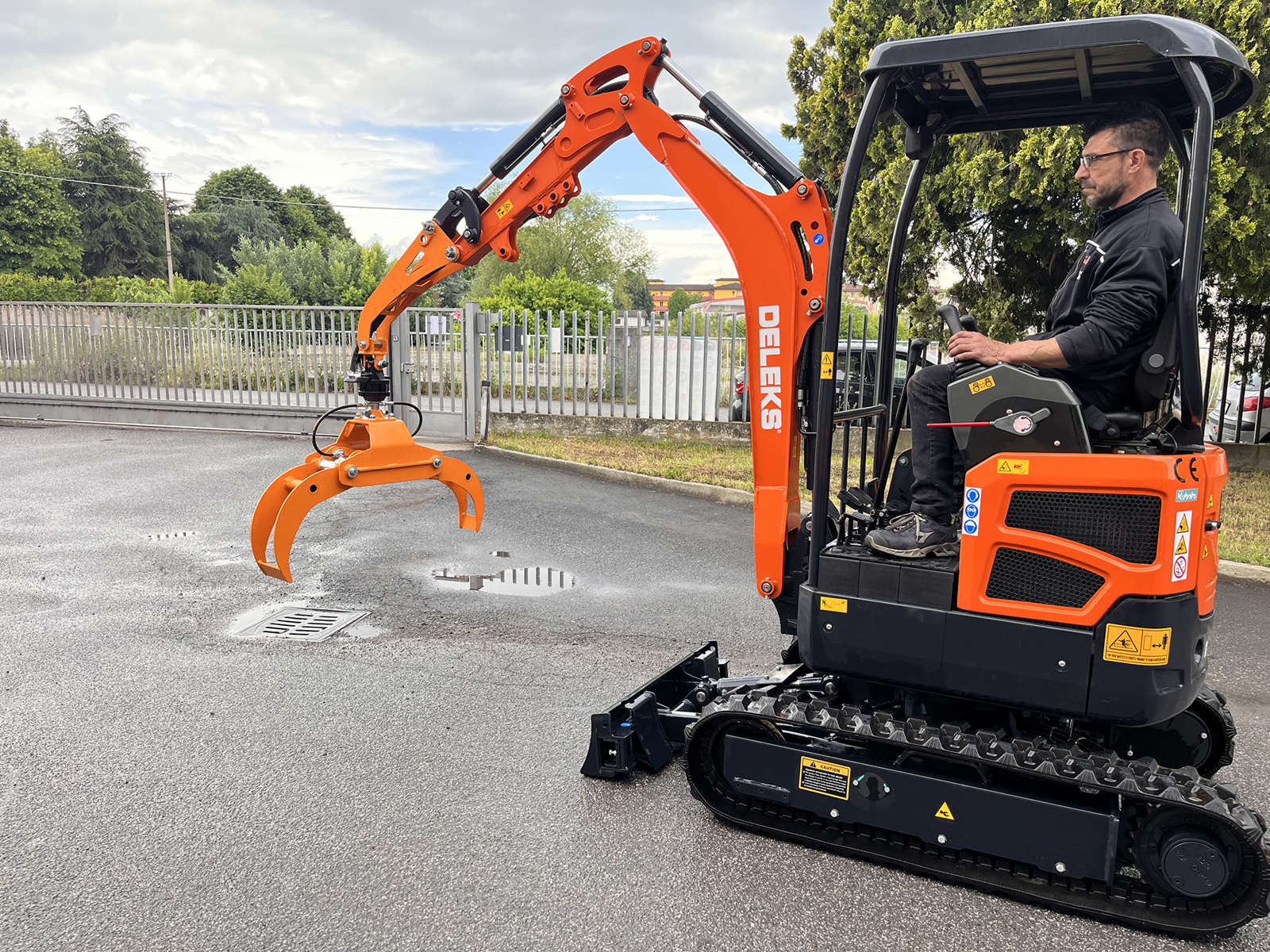

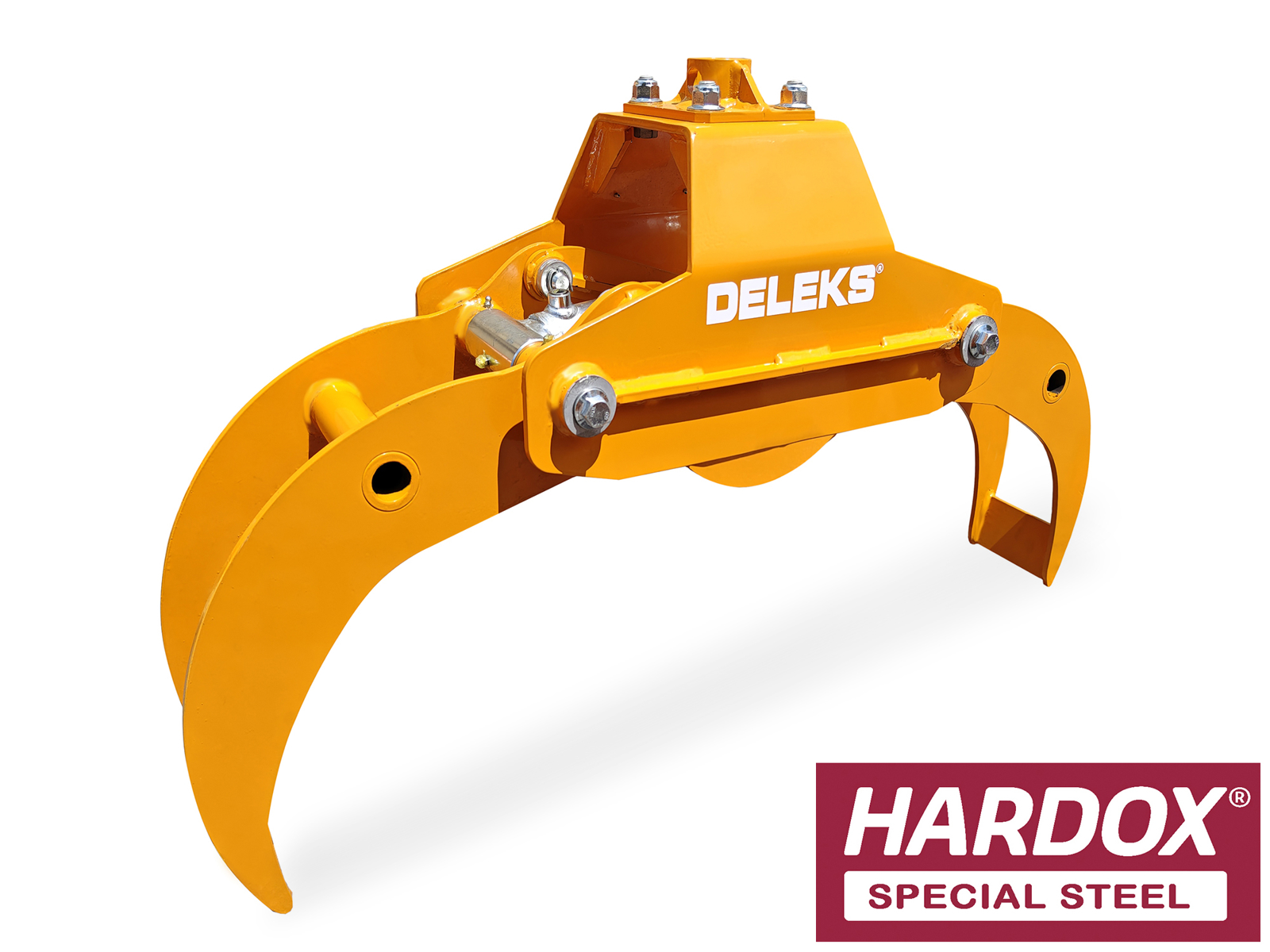

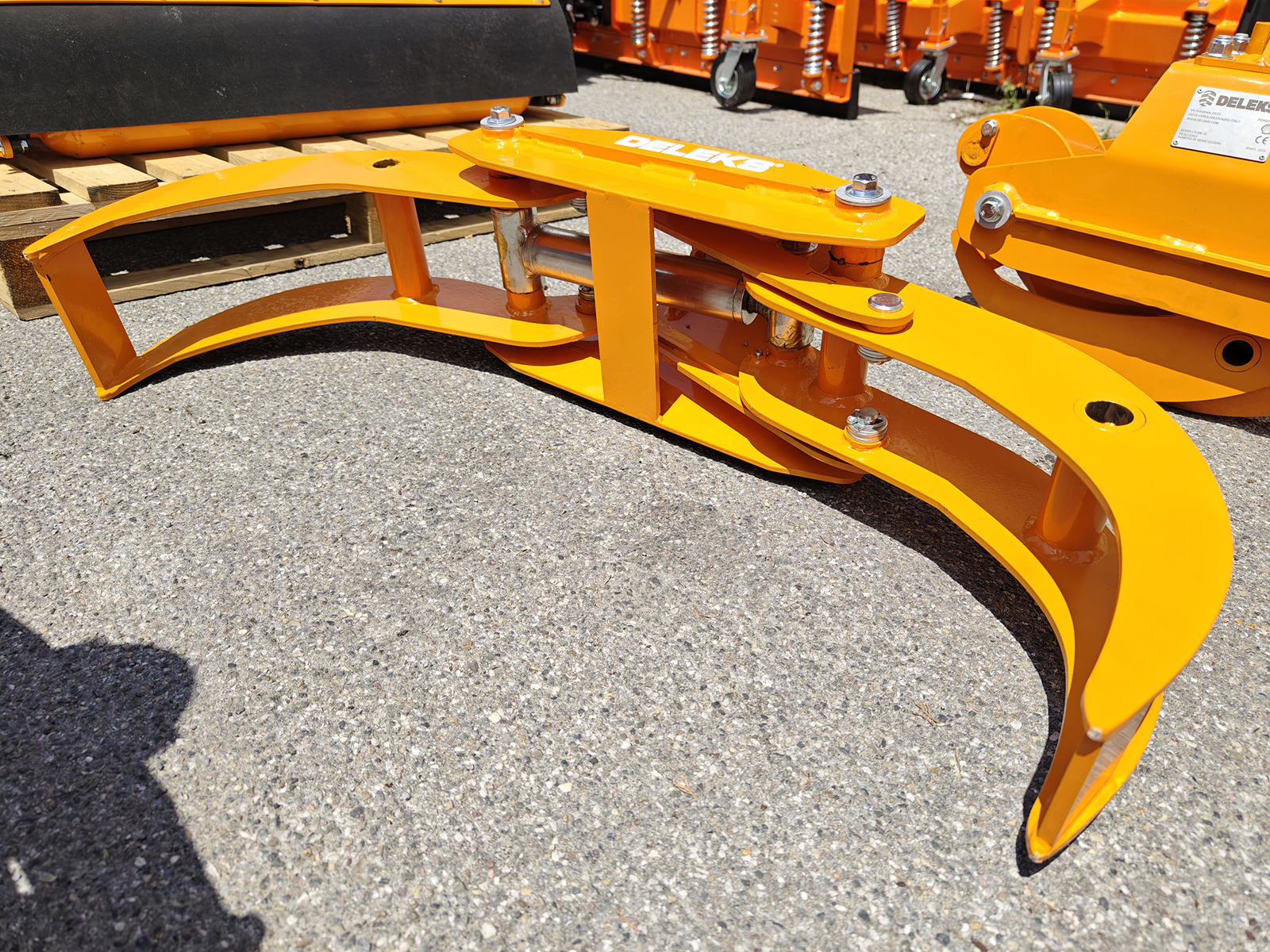

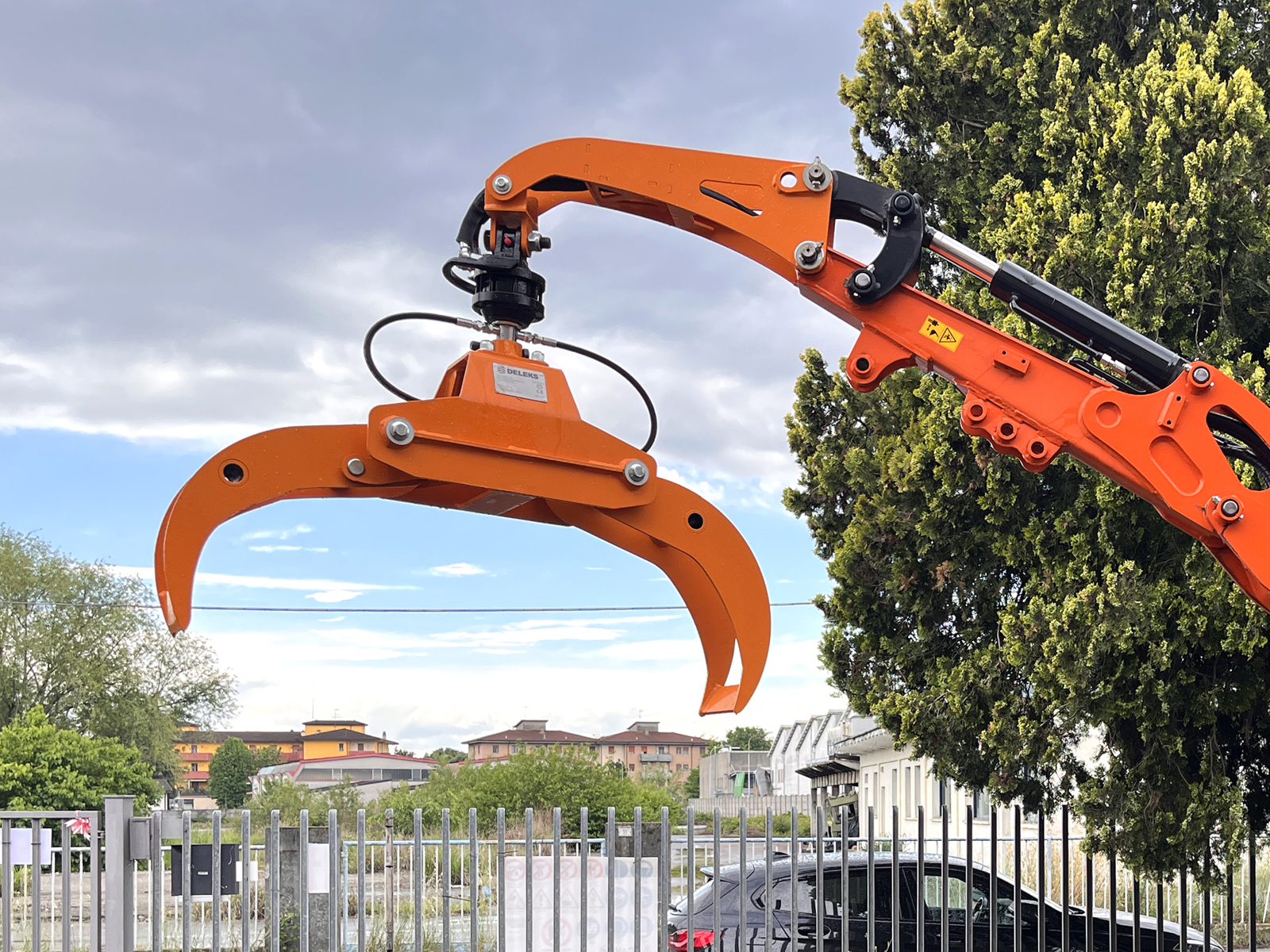

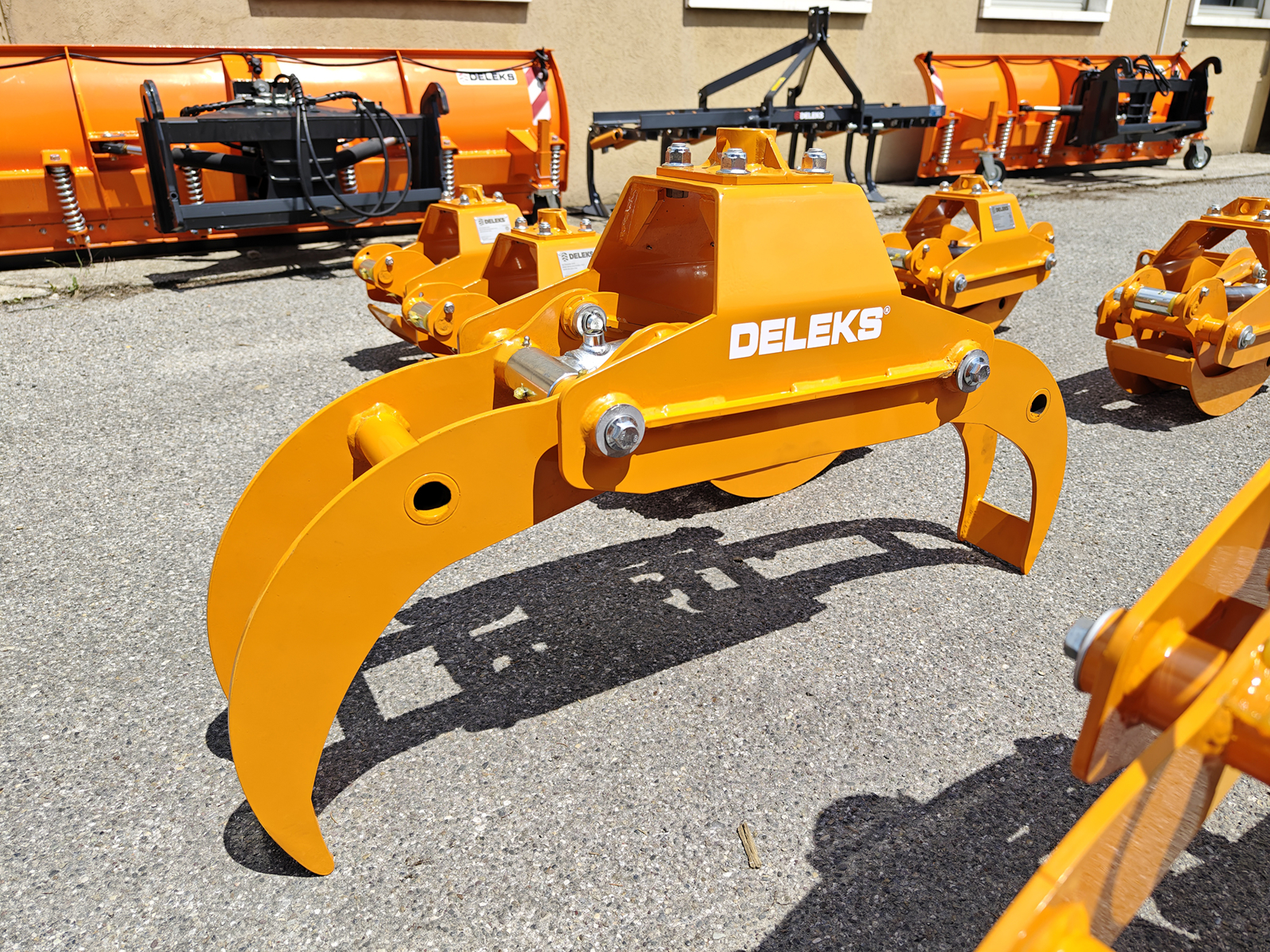

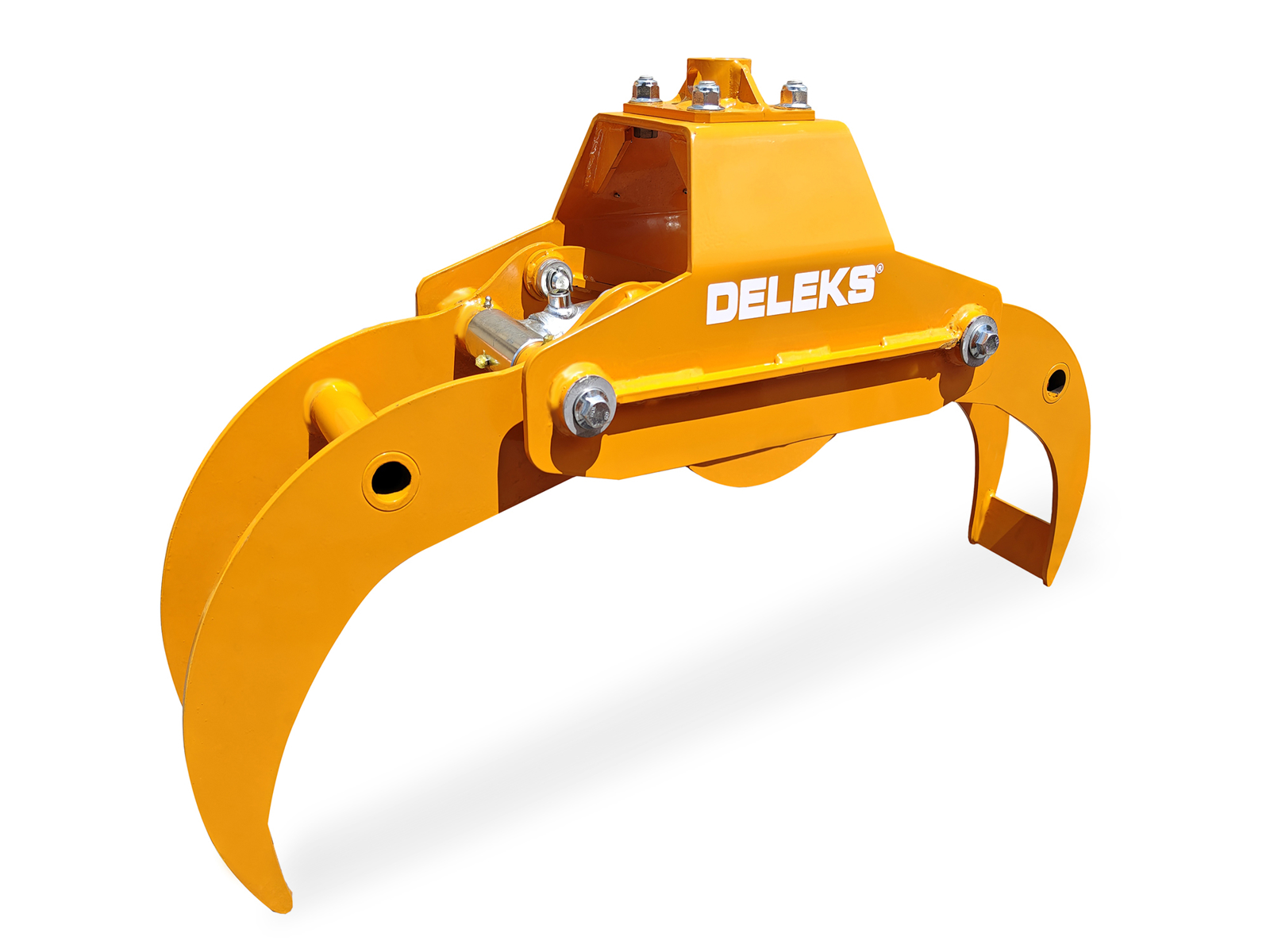

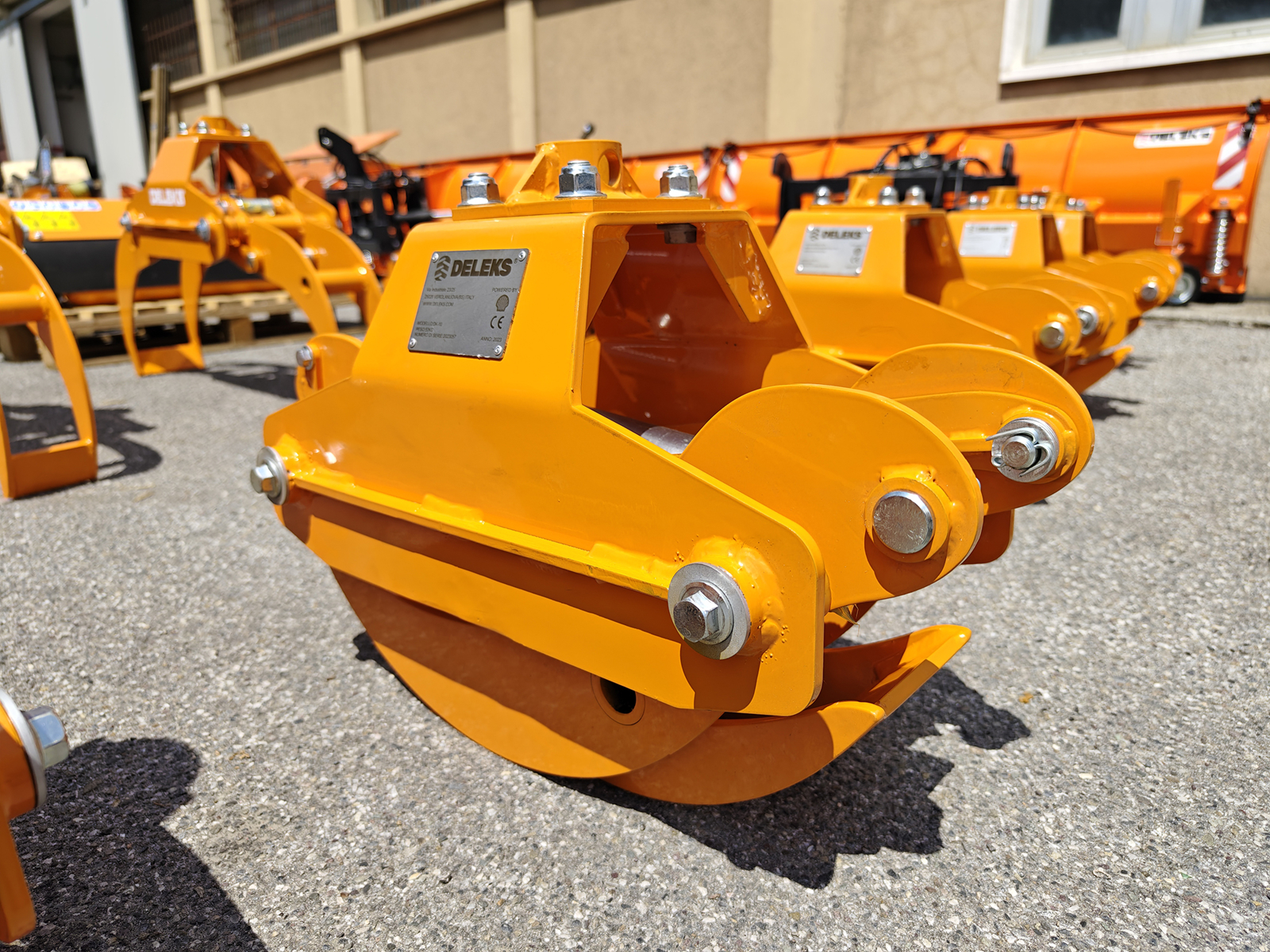

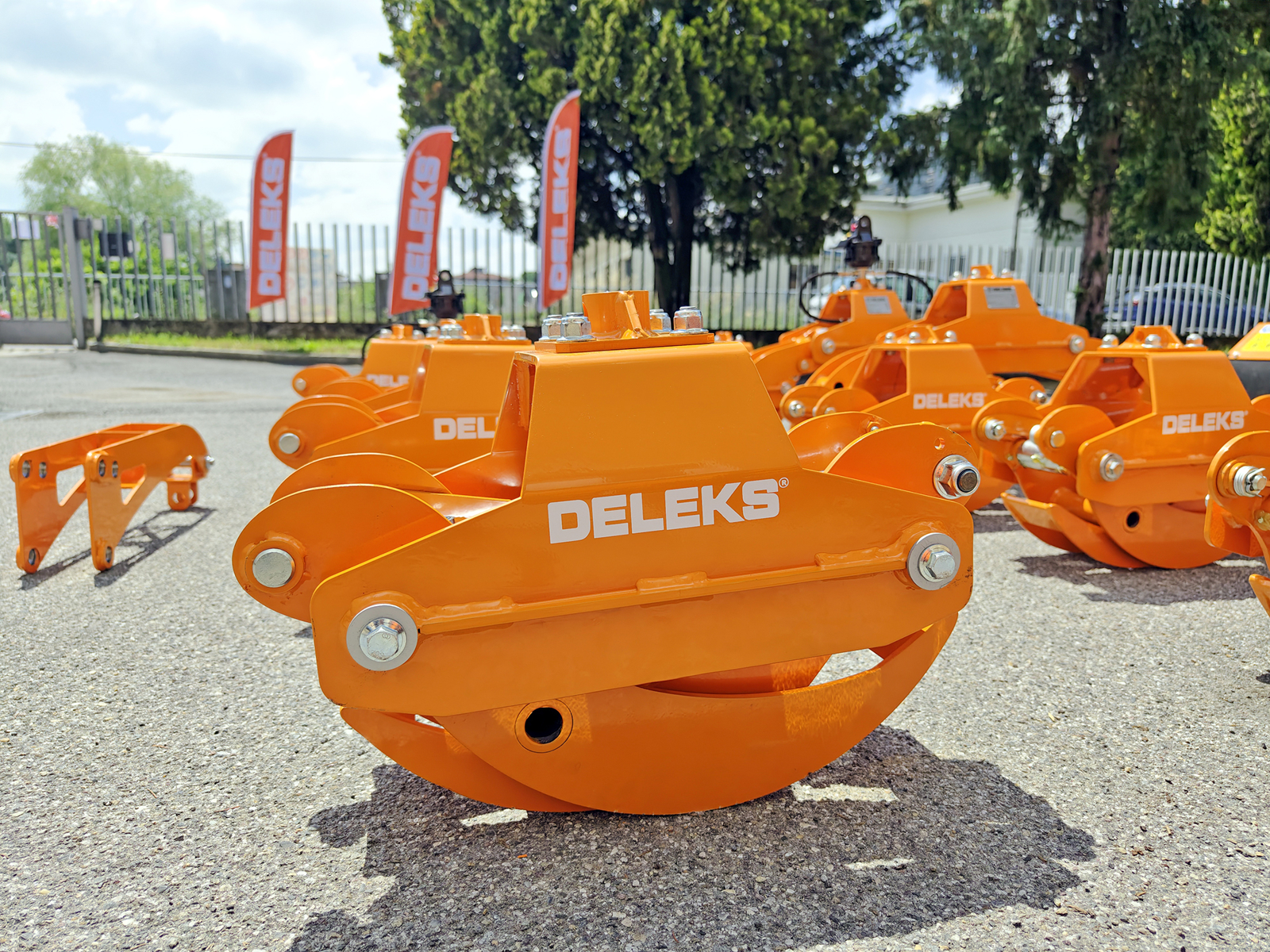

Log Grapple for Mini Diggers and Forest Cranes 1.5 – 3.0 Ton - DELEKS® DK-10H - Made in Italy.
OVERVIEW

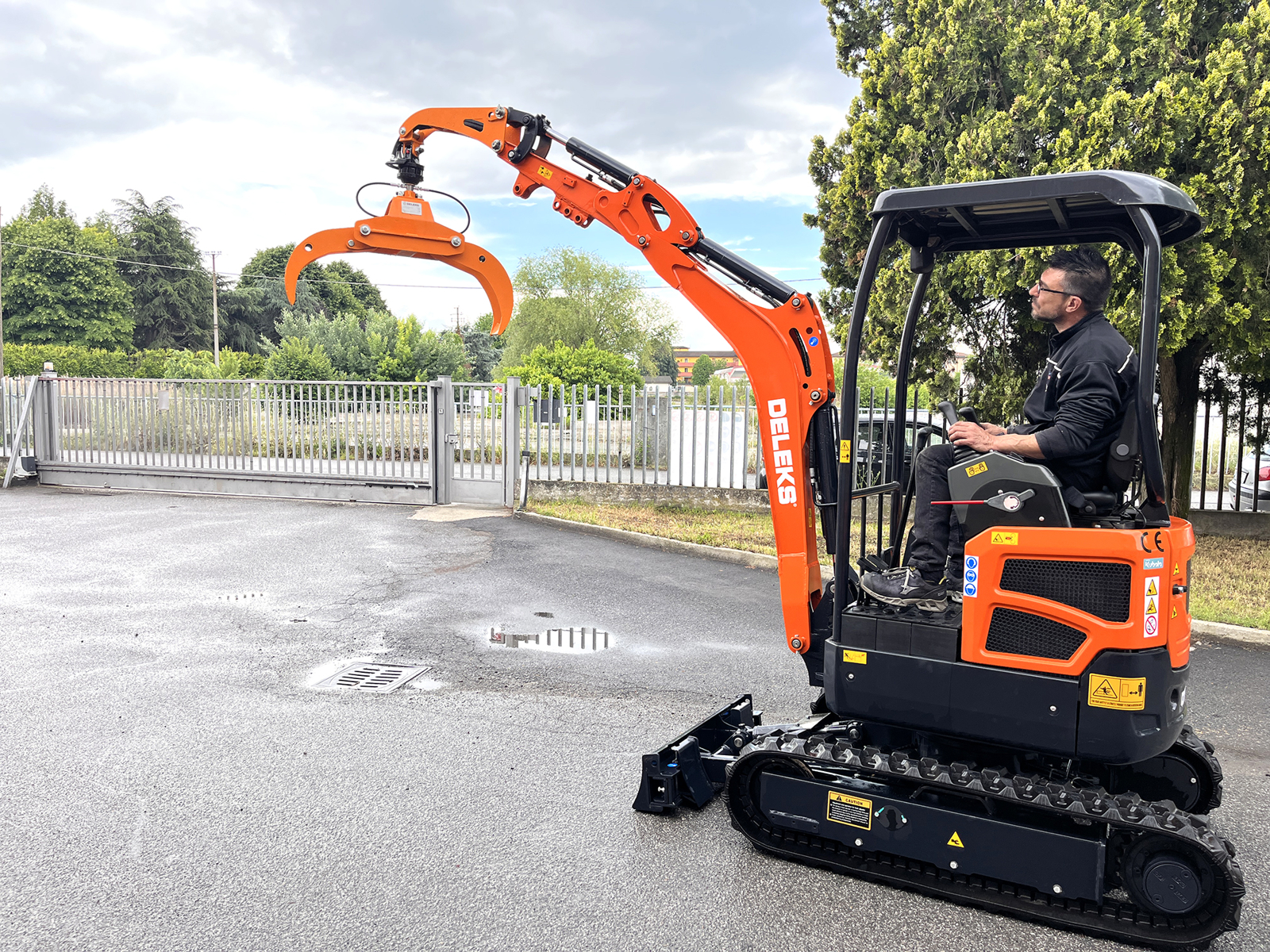

Lightweight and durable log grapple is perfect for carrying logs, timber and even heavy rocks and boulders making it an essential tool when carrying out forestry work, clearing debris or repairing stone walls. Maximum load 600.0 kg. Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
Thanks to the DK10's unique design it grips timber, boulders or debris tightly.
Made in HARDOX steel.
High tensile strength, reinforced grapple tines.

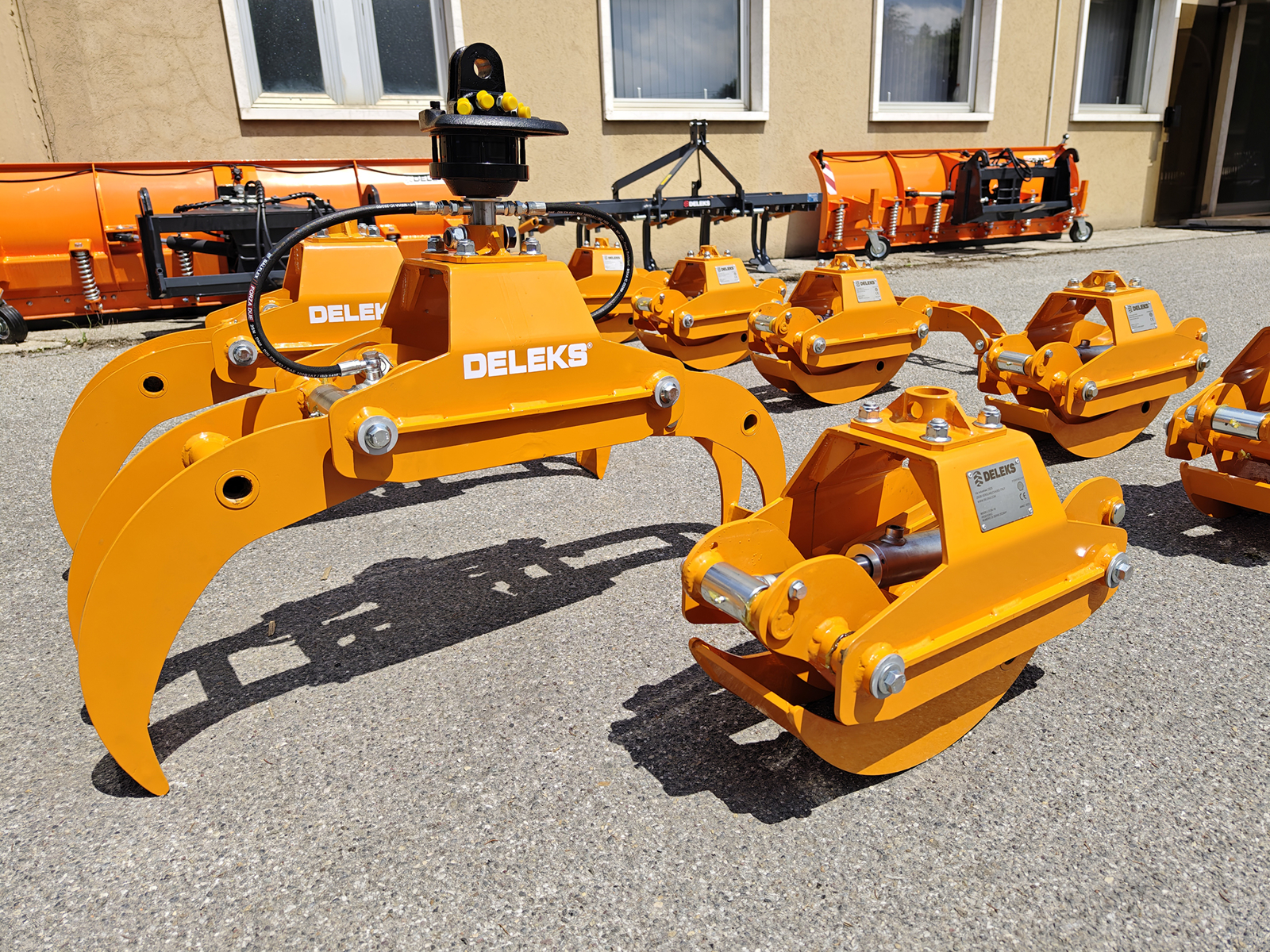

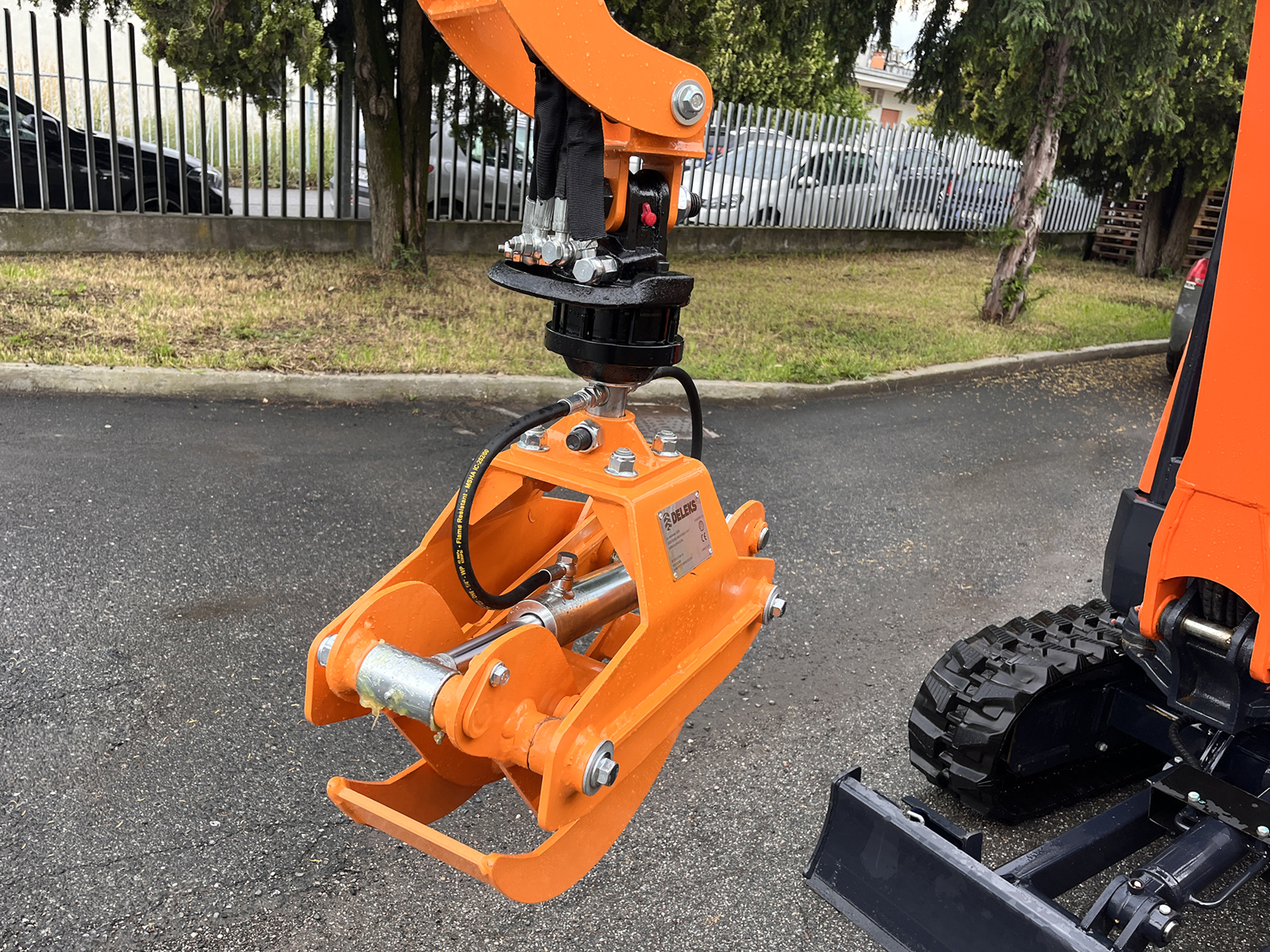

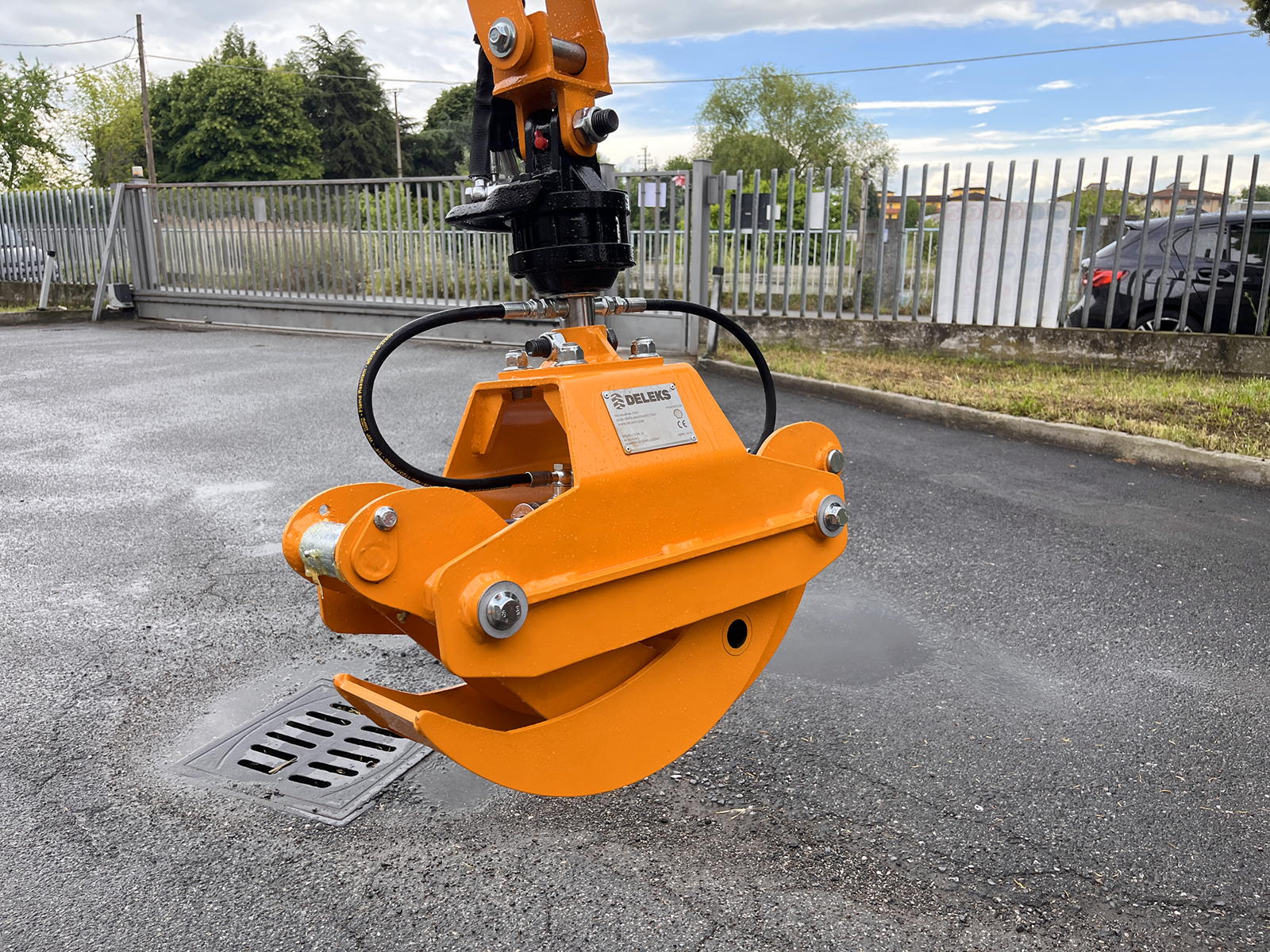

Available with optional hydraulic kit and rotator.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 62.0 kg |
| Load capacity | 600.0 kg |
| Main hood thickness | 8.0 mm |
| Min./Max. Relief Pressure | 80 - 120 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Other sizes | See pictures |
| Hydraulic Hoses | 400 bar pressure |

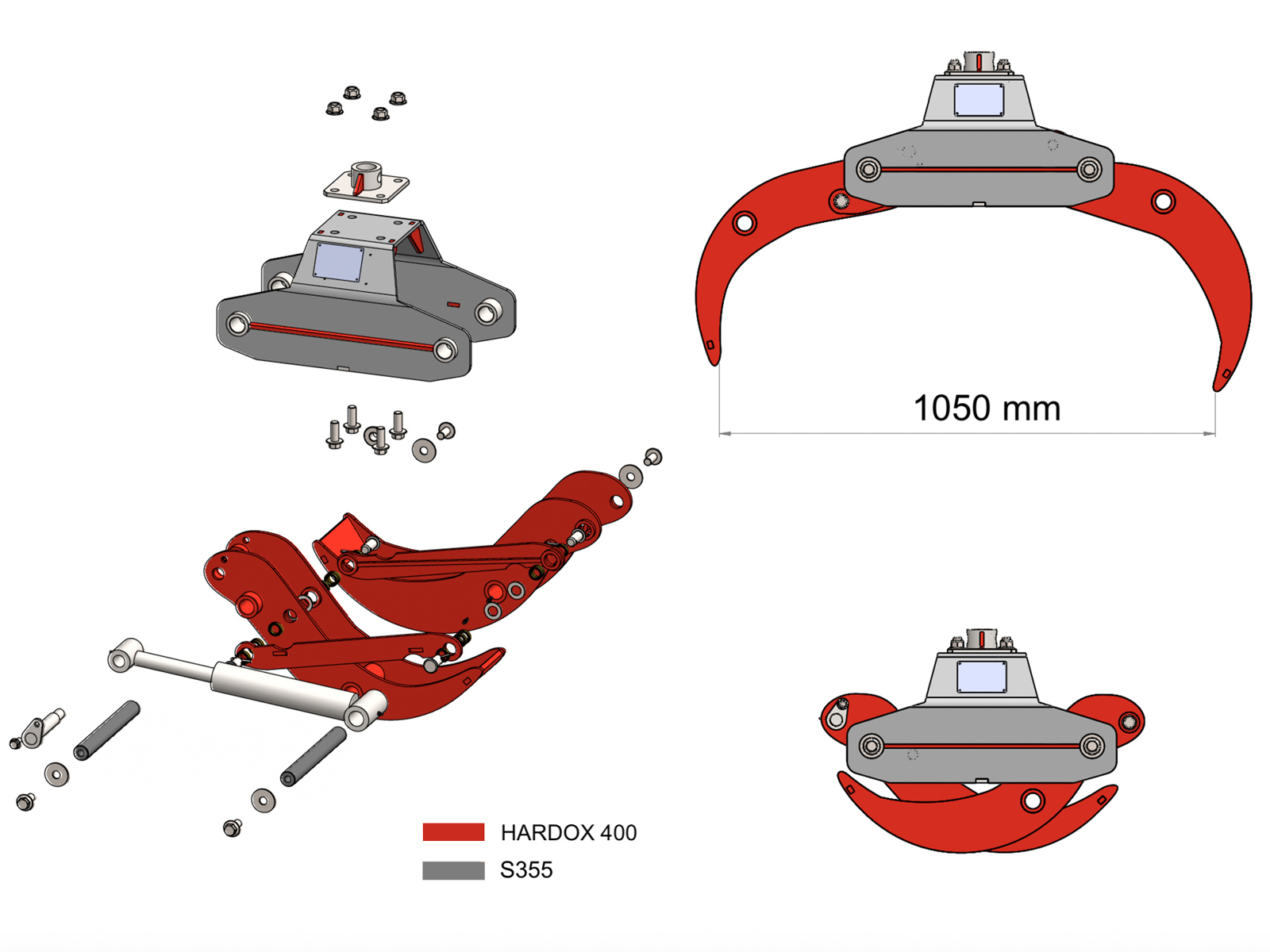

| Max Opening | 1050.0 mm |
| Height, grapple open | 660.0 mm |
| Height, grapple closed | 495.0 mm |
| Width, grapple open | 1150.0 mm |
| Width, grapple closed | 660.0 mm |
| Overall depth | 350.0 mm |
| Minimum diameter of the log | 50.0 mm |
| Hydraulic cilinder diameter | 50.0 - 25.0 mm |
| Max Pressure | 200 Bar |
| Compact Excavators Range | 1.5 - 2.5 ton |
| Packing sizes | 600.0*800.0*450.0 mm |
DETAILS
CLOSELog Grapple for Mini Diggers and Forest Cranes 1.5 – 3.0 Ton - DELEKS® DK-10H - Made in Italy.
OVERVIEW
Lightweight and durable log grapple is perfect for carrying logs, timber and even heavy rocks and boulders making it an essential tool when carrying out forestry work, clearing debris or repairing stone walls. Maximum load 600.0 kg. Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
Thanks to the DK10's unique design it grips timber, boulders or debris tightly.
Made in HARDOX steel.
High tensile strength, reinforced grapple tines.
Available with optional hydraulic kit and rotator.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 62.0 kg |
| Load capacity | 600.0 kg |
| Main hood thickness | 8.0 mm |
| Min./Max. Relief Pressure | 80 - 120 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Other sizes | See pictures |
| Hydraulic Hoses | 400 bar pressure |
| Max Opening | 1050.0 mm |
| Height, grapple open | 660.0 mm |
| Height, grapple closed | 495.0 mm |
| Width, grapple open | 1150.0 mm |
| Width, grapple closed | 660.0 mm |
| Overall depth | 350.0 mm |
| Minimum diameter of the log | 50.0 mm |
| Hydraulic cilinder diameter | 50.0 - 25.0 mm |
| Max Pressure | 200 Bar |
| Compact Excavators Range | 1.5 - 2.5 ton |
| Packing sizes | 600.0*800.0*450.0 mm |

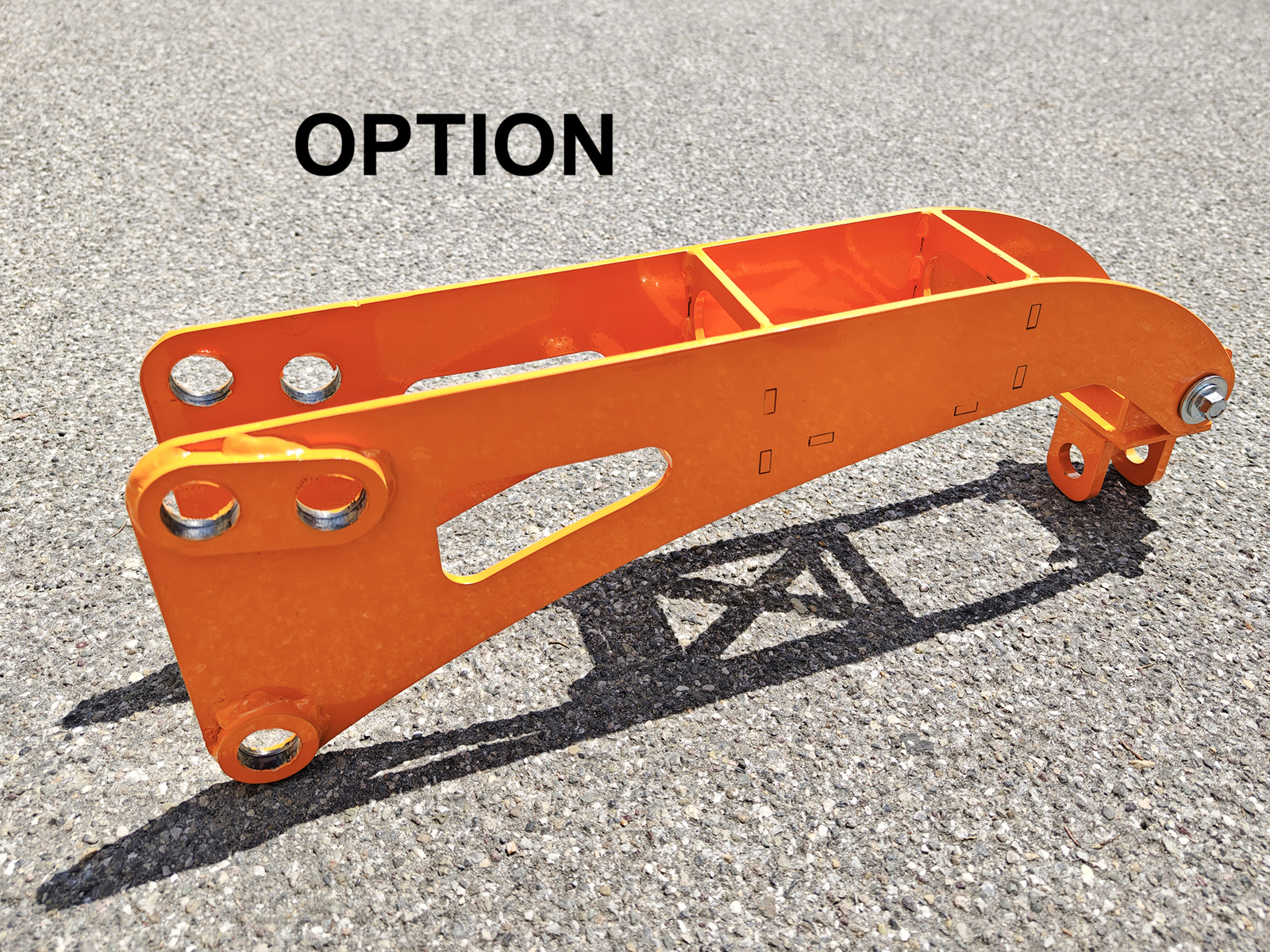

Optional
